Optical Comparator Calibration: Magnification, Stage Accuracy, and Optics

An optical comparator turns a small part into a large shadow you can measure. That only works if the magnification is exactly what the lens claims and the stage moves exactly as far as the readout says. A 0.1 percent magnification error at 50X is invisible on screen and real on every part.

Optical comparator calibration verifies the full system: lenses, stage, readout, and screen. This guide explains how comparators work, what calibration covers, and what degrades their accuracy.

Optical Measurement Principles

How Optical Comparators Work

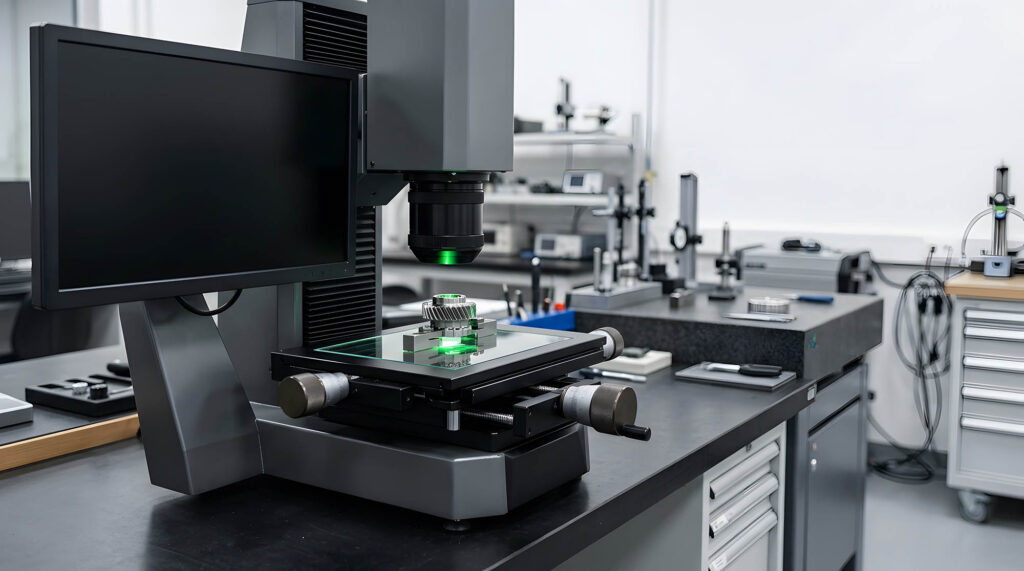

An optical comparator, also called a profile projector, projects a magnified image of a part onto a screen. In profile (back) lighting, light passes around the part and projects its silhouette. In surface lighting, light reflects off the part to show surface features. The operator compares the image to an overlay chart or measures it using the stage and digital readout.

Magnification and Projection Systems

Interchangeable lenses provide fixed magnifications, commonly 10X, 20X, 31.25X, 50X, and 100X. Lenses, mirrors, and condensers form the optical path, and the screen often includes crosshairs and a rotating protractor ring for angle measurement. Each lens has its own magnification error, so each one needs to be verified.

Applications in Quality Control

Comparators excel at features that are difficult to reach with contact tools: thread profiles, radii, gear teeth, small stamped and machined parts, and soft or flexible parts that a contact probe would deform. They remain common in aerospace, medical device, automotive, and precision machining inspection.

Calibration Requirements

There is no single dominant standard for comparator calibration, so labs calibrate to the manufacturer’s specification and an accredited procedure. A complete calibration covers four areas.

Magnification Accuracy Verification

Each lens is checked by projecting a calibrated glass scale and measuring the image on the screen. The measured image size divided by the known scale length gives the actual magnification, which is compared to the nominal value and its tolerance. Measurements are taken in multiple directions and positions across the screen to reveal distortion near the edges.

Stage Movement Accuracy

The X and Y stage travel, as reported by the digital readout, is checked against a glass scale or gauge blocks at intervals across the full travel. Squareness between the X and Y axes is also evaluated. Stage error affects every measurement made by moving the stage, whatever the lens.

Light Source and Optical Element Checks

The light source, condensers, lenses, and mirrors are inspected for even illumination, focus, and image quality. Screen rotation and the protractor ring are checked for angular accuracy. Edge detection devices, where fitted, are verified against known features.

Typical Challenges

Optical System Degradation

Lens coatings degrade, mirrors tarnish, and dust and oil films accumulate on optical surfaces. Lamps dim and shift color as they age. Each of these softens edges in the projected image, and soft edges make measurement less repeatable.

Stage Wear and Backlash

Stage ways and lead screws wear, introducing backlash that shows up when the stage reverses direction. Contamination on the scales causes readout errors. Operators can reduce backlash effects by approaching measurement points from the same direction.

Temperature Stability Requirements

Projection lamps generate heat, and high magnification amplifies any movement. Comparators need a stable room temperature, a warm-up period before critical measurements, and placement away from drafts and direct sunlight.
